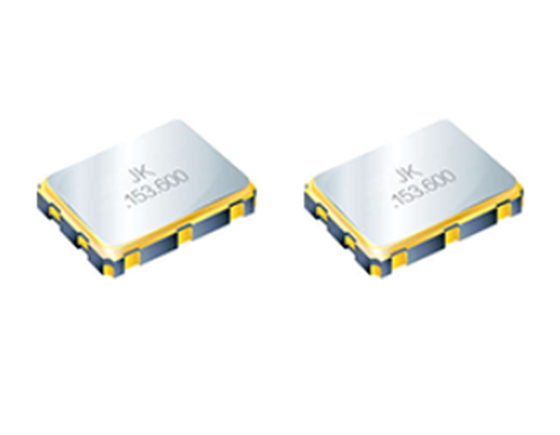

型 号 Type | TCXO 3225 | |
频率范围Frequency Range | 13～52MHz | |
输出类型Output Type | Clipped Sinewave | |
输出负载Output Load | 10KQ//10 pF | |
振荡模式Oscillation Mode | Fundamenta | |
供电电压Supply Voltage | 1.8~3.3V | |
输出电压Clipped Sinewave Output Voltage | 0.8Vp-ptypical | |
频率稳定性Frequency Stability | Vs.Temperature(-30～+85°C) | ±0.5/±2.0 ppm |
Vs. Load(Load varies± 10%) | ± 0.2 ppm Max | |
Vs.Supply Voltage(Vcc=Typical±0.1V) | ± 0.2 ppm Max. | |
频率容限Frequency Tolerance | at 25°C atter 2 Reflows with Typical Applied to Auto Frequency Control Pin | ± 2.5 ppm Max. |
频率漂移Slope of Frequency Drift | ±0.1 ppm/°C Typical;±0.5ppm/°CMax. | |
储存温度范围Storage Temperature Range | -40～+85°C | |
自动频率控制范围Auto Frequency Control(AFC)Range | ±7- ±16ppm(1.4±1V) | |
电源电流Supply Current | 2.0mAMax. | |
启动时间Start-up Time | 5ms Max. | |
谐波Harmonics | -5 dBc Max. | |
相位噪声Phase Noise at 1 kHz offset | -130dBc/Hz | |
年老化Aging(at25°C) | ±1ppm/year Max. | |
