SMD5032
贴片晶体谐振器
特点

额定频率范围: 8Mhz~150Mhz;

外部尺寸规格:5.0x3.2x0.8mm(t:max)

谐波次数:基频

产品应用:笔记本电脑;GPS;蓝牙无线通信设备;

产品服务:SMD5032无源贴片晶振——具备高精度、低抖动、低功耗的特点,广泛应用于笔记本电脑、GPS导航、蓝牙等无线通信设备。

.selectTdClass{background-color:#edf5fa !important}table.noBorderTable td,table.noBorderTable th,table.noBorderTable caption{border:1px dashed #ddd !important}table{margin-bottom:10px;border-collapse:collapse;display:table;}td,th{padding: 5px 10px;border: 1px solid #DDD;}caption{border:1px dashed #DDD;border-bottom:0;padding:3px;text-align:center;}th{border-top:1px solid #BBB;background-color:#F7F7F7;}table tr.firstRow th{border-top-width:2px;}.ue-table-interlace-color-single{ background-color: #fcfcfc; } .ue-table-interlace-color-double{ background-color: #f7faff; }td p{margin:0;padding:0;}
  • 电气参数(Electrical Specifications)


型号

Holder Type5.0x3.2mm Ceramic Surface Mount

频率范围

Frequency Range8MHz to 150MHz

调整频差

Frequency Tolerance(△F)(at25℃)±10ppm to ±30ppm

温度频差

Frequency Drift±10ppm to ±30ppm※(See Notes)

工作温度范围

Operating Temperature Range-20℃ - +70℃ / -40℃ - +85℃

储存温度范围

Storage Temperature Range-40℃ - +85℃ /-55℃ - +125℃

老化

Aging(25℃)±3ppm/ year max.

静电容

Shunt Capacitance(C0)5pF max.

激励功率

Drive Level10μw (300μW max.)

绝缘阻抗

Insulaton Resistance(Rs)500 Megaohms Minimum at D.C100V

负载电容

Load Capacitance(CL)Suggested by customer

※Notes:±10,±20,±30ppm (-20℃ to +70℃)

±20,±30,±50ppm (-40℃ to +85℃) or depends on customer


  • 等效阻抗和振荡模式(Equivalent Series Resistance and Mode of Operation)


Frequency  Range 频率范围

ESR(Ω)等效阻抗Mode 振荡模式

8MHz≤ f <10MHz

100Ωmax基频Fundamental

10MHz≤ f <12MHz

80ΩmaxFundamental

12MHz≤ f <16MHz

60ΩmaxFundamental

16MHz≤ f <20MHz

50ΩmaxFundamental

20MHz≤ f <24MHz

40ΩmaxFundamental

24MHz≤ f <50MHz

30ΩmaxFundamental

40MHz≤ f <150MHz

80Ωmax三次泛音Third Overtone

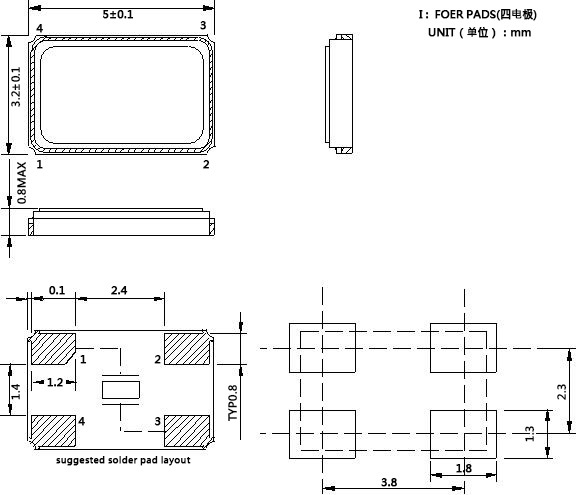

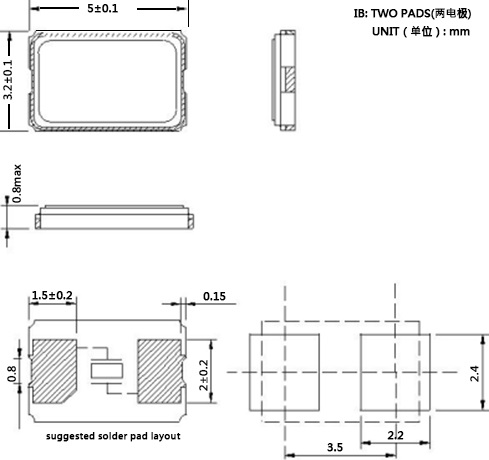

  • 外型尺寸(Mechanical Dimensions)


5032-2PAD.jpg                 5032-4PAD.jpg

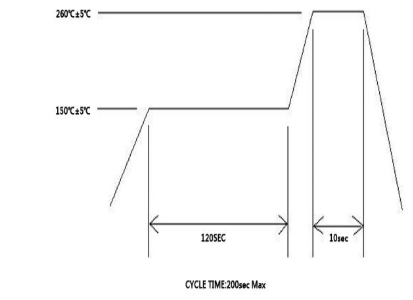

  • 回流焊条件(Reflow Condition)


晶体谐振器5032贴片标准回流封焊
