SMD2016
贴片晶体谐振器
特点

额定频率范围:26MHz~54MHz;

外部尺寸规格:2.0x1.6x0.35mm (t:max)

谐波次数:基频

应用:移动电话;蓝牙;无线-局域网;

服务:SMD2016无源贴片晶体谐振器——具备高精度、低抖动、低功耗的特点,广泛应用于移动电话、蓝牙、无线局域网等电子设备中。


  • 电气参数(Electrical Specifications)

型号

Holder Type

2.0x1.6mm Ceramic Surface Mount

频率范围

Frequency Range

24MHz to 54MHz

调整频差

Frequency ToleranceF)(at25

±10ppm to ±30ppm

温度频差

Frequency Drift

±10ppm to ±30ppm (See Notes)

工作温度范围

Operating Temperature Range

-20 - +70 / -40 - +85

储存温度范围

Storage Temperature Range

-40 - +85 /-55 - +125

老化

Aging25

±3ppm/ year max.

静电容

Shunt CapacitanceC0

3pF max.

激励功率

Drive Level

10μw (100μW max.)

绝缘阻抗

Insulaton ResistanceRs

500 Megaohms Minimum at D.C100V

负载电容

Load CapacitanceCL

Suggested by customer

Notes:

1±10±20±30ppm (-20 to +70)

2±20±30±50ppm (-40 to +85) or depends on customer


  • 等效阻抗和振荡模式(Equivalent Series Resistance and Mode of Operation)

Frequency  Range 频率范围

ESR(Ω)等效阻抗Mode 振荡模式

24MHz≤ f <26MHz

80ΩmaxFundamental

26MHz≤ f <40MHz

60ΩmaxFundamental

40MHz≤ f <54MHz

50ΩmaxFundamental

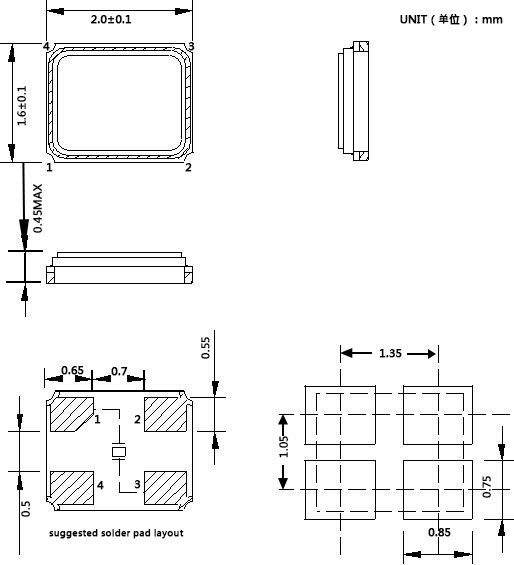

  • 外型尺寸(Mechanical Dimensions)


Note:

#2,#4 is connected with a cover (please connect with GND or floating)

#2,#4 PIN,接地或者悬空

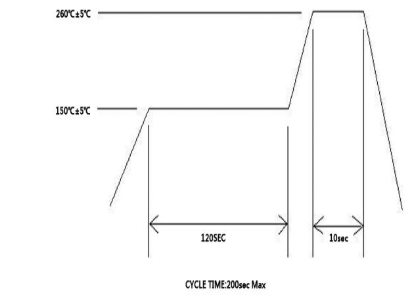

  • 回流焊条件(Reflow Condition)

晶体谐振器2016贴片标准回流封焊
